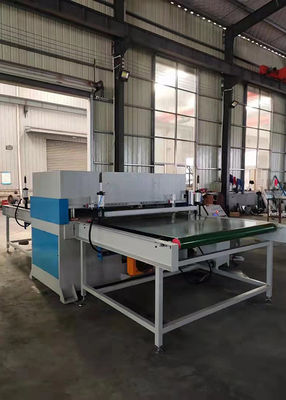

Precision Hydraulic Press Die Cutting Machine For Leather
| Place of Origin | JIANGSU ,CHINA |
|---|---|
| Brand Name | YAOYU |
| Certification | CE |
| Model Number | XCLL-2/25 |
| Minimum Order Quantity | 1 SET |
| Packaging Details | WOODEN CASE |
| Delivery Time | 30 days |
| Payment Terms | TT50% IN ADVANCE ,50% BEFORE SHIPMENT |
| Supply Ability | 100 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Customized | Key Selling Points | Easy To Operate |
|---|---|---|---|
| Packaging Type | Case | Certification | CE And ISO |
| Application | APPAREL, Beverage, Food, Medical, Textiles | Automatic Grade | Automatic |
| High Light | Precision Hydraulic Press Die Cutting Machine,Precision Leather Cutting Press Machine,Double Cylinders Leather Cutting Press Machine |
||
Product Description
Hg-B50t Precision Hydraulic Press Die Cutting Machine/Leather Cutting Press Machine
Features and Advantages:
1. Double-cylinders,four-columns,self-balancing connecting rod which can maintain equal pressure of each position.
2. Series B machine has the long-stroke setting for adopt to the jumbo-size materials and high knife mould cutting.
3. When the upper board pressure down and contact to the blade,automatically,it can cut slowly,so that there is no size error between the top and the bottom materials.
4. The unique setting construction,combine with the cutting knife and cutting height which stroke simple and accurate.
5. Central automatic lubrication systems can ensure precision and durability of the machine.
6. More economical and 2 or 3 times improving producting capacity.
7. Suitable for single-layer or multi-layer sheet or roll materials.
Features:
1. Gantry frame structure made of profile steel is adopted, with high intensity and without deformation.
2. The cutting head can automatically move horizontally, with excellent operating visual field and safe and reliable operation.
3. The hydraulic system specially designed is featured by low noise and low oil consumption.
4. The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.
5. The movement of cutting head is controlled by automatic speed variation to realize flexible movement with high speed and accurate positioning and without impact.
6. Differential oil way is adopted to allow rapid and convenient cutting.
7. Products of special specifications can be customized.
Technical Spec:
| Maximum Cutting Force | 40T | 60T | 250T |
| Cutting Area (mm) | 1250*800 | 1250*1200/1600*1200 | 1800*1200/Customizable |
| Tension Distance (mm) | 25-135 | 25-135 | 25-175/Customizable |
| Motor Power (kw) | 4 | 5.5 | 22kw |
| Estimated G.W (kg) | 5000 | 7500 | 15900 |
Product Description:
1. This type of die cutting machine with conveyor belt is used for continuous and large-batch cutting of nonmetal materials in rolls, such as carpet and car interior materials, ball panel materials, leather, rubber, film, fabric and other materials.
2. The materials conveying part adopts PLC control. The materials are driven by servo motor and feed in from one side of the machine and finished products come out from the other side. The feeding is precise and automatic. The feeding length can be adjusted conveniently through touch screen.
3. The machine can be installed with four-column guiding, double-crank balancing, four-column blocking fine-adjustment mechanism and specially designed hydraulic control system, providing high speed and precise cutting operation. Central oil supply automatic lubricating device reduces the abrasion of all movable connecting parts to the minimum.
4. The die cutter or cutting mould can be fastened by pneumatic clamp device so as to make its replacement convenient and prompt.
5. Machines with special specifications can be available on request.
Efficiency Hydraulic Traveling-head Cutting Machine XCLL-2/25
Application:
This machine is suitable for cutting materials of single or multi-layer leather, rubber, plastic, plastic, textile, chemical fiber etc.
Advantage:
1. The machine is easy to operate, simple, low failure rate, strong cutting force and quick cutting speed.
2. The machine is a double oil cylinder and precise four-column automatic balancing connecting rod structure to ensure the same depth of each cutting position.
3. When the cutting plate is under pressure, the cutting blade is automatically cut, so that the cutting material has no size error at the top and bottom.
4. It is operated by hands with high safety.
Parameter:
Maximum impact force:250KN 300KN
The cutting speed:0.12m/s
Stroke range:0-120mm
The distance between the upper and lower plates:30-150mm
Upper pressure plate size:500x500mm
Lower work table size:1600x500mm
The motor power:2.2kw
Overall dimensions:2200x700x2050mm
The weight:1680kg
Note:The company can customize the special specifications such as cutting zone, feeding mode (single, bilateral automatic feeding) according to customer's requirements.
