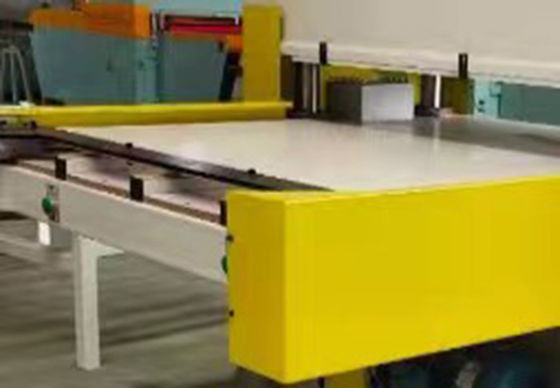

Industrial Playing Card Hydraulic Die Cutting Machine Full Automatic
|Color||White And Blue||Parameter||Can Be Customized|
|Video Outgoing-inspection||Provided||Type||Die-cutting Machine|
|Key Selling Points||Easy To Operate||Voltage||AS CUSTOMER REQUIRE|
Hydraulic Die Cutting Machine Fully Auto,
Playing Card Hydraulic Die Cutting Machine
Professional Hydraulic Die Cutting MachineFull Automatic Industrial Playing Card
|Cut Precision:||± 0.10mm|
|Max Paper Convey Width:||850mm|
|Suitable Material:||100-800g/m2 coated paper, white cardboard|
|Maximum cutting size:||950 x540mm / 950 x640mm|
|Overall Dimension:||4200 x 2100 x 1850 mm|
|Working Air Source:||Air pressure 0.5-0.7Mpa (Need to buy compressor)|
Automatic Hydraulic Die Cutting Machine
This machine is suitable for all kinds of non - metal sheet metal materials to be cut or half - cut.
For example: plastic, pearl cotton packaging, rubber, printing and other industries.
Maximum cutting force:40T
Upper pressure plate to table distance:50-200 ㎜
The cutting area:1600×610 ㎜/1400×610 ㎜
Main motor power:3KW
Note:The company can customize the special specifications such as cutting zone, feeding mode (single, bilateral automatic feeding) according to customer's requirements.
1. PLC programmable control, simple operation, fast and accurate.
2. The main engine adopts double oil cylinder, double crank automatic balance connecting rod balance and four-column precision guide mechanism to ensure the cutting depth of each cutting position is exactly the same.
3. When pressing the pressing plate, it is automatically slow to cut the cutting, so that there is no size error between the top and bottom of the cutting material.
4. All sliding parts are lubricated by hydraulic system, reducing wear and tear, ensuring the service life and precision of the machine.
5. The automatic feeding mechanism of the bilateral motor adopts the frequency conversion buffer system, which can simultaneously cut the different height of the cutter to improve the efficiency of the work 80%.
6. Can configure the cutting board micro device, make the cutting board uniform consumption, cost saving.
7. It can be equipped with die clamping device, and it is convenient and fast to replace the die.
