Flame Luggage Home Textile Lamination Machine Electric Heating Automatic Blowing Method
|Color||White||Parameter||Can Be Customized|
foam lamination machine,
textile lamination machine,
Electric Heating Textile Lamination Machine

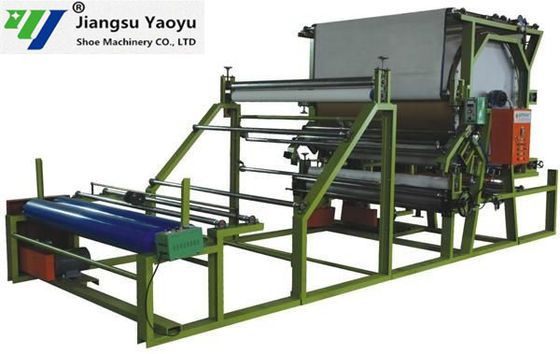

"Yaoyu" High Quality Efficient Mesh Belt Type Laminating Machine
It is mainly used for the compound of fabric, such as fabric, velveteen, duel, spring cloth, non-woven fabric, wallpaper, leather, sponge, machine weaving, SPE, TPU, PU, PE, EVA, PVC and so on.It is widely used in clothing, car interior, shoes and hats, luggage, decoration, home textiles and other industries.
Power supply:380V/50HZ/Three phase
The effective width:1800/2000/2300mm(Can be customized)
Roller surface width;1800/2000/2300mm(Can be customized)
Heating drum specification (special specification can be customized):1500*1800/2000/2300mm
Heating mode:Electric heating
Coating method:Glue point transfer coating
Mechanical design speed:5-40m/min(Frequency control of motor speed)
The engine power:About 65kw
Overall dimensions(L*W*H);About 13000*2500*2450mm(Kind prevail)
Gross weight:About 5500kg Kind prevail
Note: the model above is some typical ones of our Hanger Shot Blasting Machine, and we usually design the size of the machine accordingto your working piece. We could manufacture all kinds of shot blasting machine based on customers' needs.
So please tell us the details of your workpiece, then we could design the suitable one for you.
1. The whole system is controlled by intelligent PLC computer program, which is easy and easy to operate.Greatly reduced the labor (4-5 people), reduced the cost, improved the work efficiency.It is one of the most advanced equipments in the market.
2. The whole machine is equipped with automatic collection, roll, film, film, automatic rectifying, composite drying, water cooling, automatic cutting edge etc.The composite materials have the advantages of uniform coating, compound formation, no stretching deformation, no blister, wrinkling, soft, air permeability and neat, etc.
3. Composite material varieties, such as: the fabric with the fabric, the fabric type (double or elastic all around) and film (membrane in either high or low membrane), non-woven fabric and leather, sponge and flannelette, sponge and leather, coating composite materials such as paper and cloth.
4. The winding can be selected according to different materials.(you can make a large volume)
5. It is suitable for water solubility and solvent - based adhesive coating compound to achieve a multi-purpose function.
6. The gelatinize and gelatinizing styles can be adjusted according to the material and actual needs.
7. Cylinder heating can be heated by means of electricity, steam or thermal oil.
8. The cut out of the scrap belt USES the automatic blowing method, no longer need to use artificial pull.
9.The machine roll face width can be specific according to the maximum width of the actual material.
