Hydraulic Cutting Press Machine , Clicker Cutting Machine For Facial Mask Soft Toys
|Parameter||Can Be Customized|
rubber die cutting machine,
press cutting machine,
Facial Mask Hydraulic Cutting Press Machine

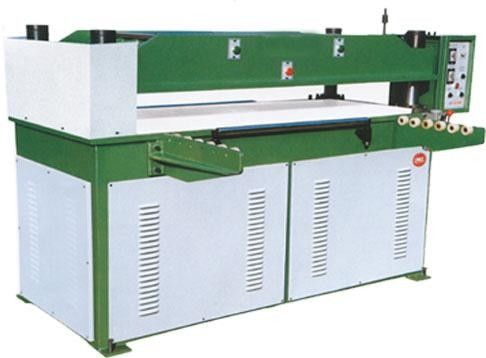

"Yaoyu" Precision Four column Hydraulic Plane Leather Die Cutting Machine XCLP-3/150
This machine is widely used in various industries (such as leather, plastic, plasticized, cloth, foaming, carpet flooring etc.) to cut the blanking of all kinds of non-metallic materials.
|Maximum impact force||1500KN|
|The cutting speed||0.08m/s|
|The distance between the plates||60-230mm|
|Upper pressure plate size||1600x1180mm|
|Lower work table size||1600x1200mm|
|The motor power||7.5kw|
Note:The company can customize the special specifications such as cutting zone, feeding mode (single, bilateral automatic feeding) according to customer's requirements.
1. The machine adopts double oil cylinder, precision four-column guide and automatic balancing double rod structure to reach the high tonnage cutting force and ensure the same cutting depth of each cutting position.
2. The machine is equipped with automatic lubrication system to ensure the machine precision and prolong the service life of the machine.
3. When the cutting board is pressed to contact the cutter, it is automatically slow to cut, making the top and bottom of the cutting material have no size error.
4. Special setting structure, with the combination of cutting force and cutting height, make the trip easy and accurate.
5. It is operated by hands with high safety.
