Leather Cutting Press Machine , Foam Die Cutting Equipment 0-150mm Stroke Range

Place of Origin JIANGSU ,CHINA
Brand Name YAOYU
Certification CE
Model Number XCLP-3/80
Minimum Order Quantity 1 SET
Packaging Details WOODEN CASE
Delivery Time 30 days
Supply Ability 100 sets per month
Product Details
Parameter Can Be Customized
High Light

rubber die cutting machine


press cutting machine


150mm Leather Cutting Press Machine

Leave a Message
Product Description

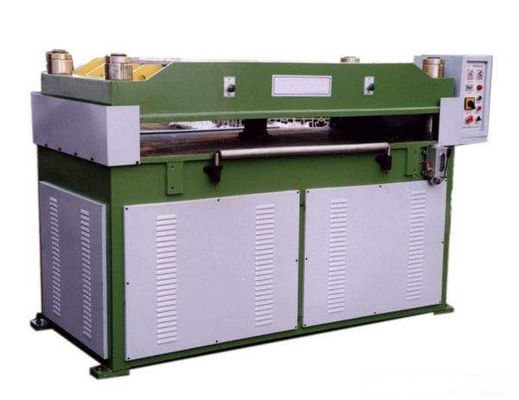

"Yaoyu" Precision Four column Hydraulic Plane Leather Die Cutting Machine XCLP-3/80





This machine is widely used in various industries (such as leather, plastic, plasticized, cloth, foaming, carpet flooring etc.) to cut the blanking of all kinds of non-metallic materials.



1. The machine adopts double oil cylinder, precision four-column guide and automatic balancing double rod structure to reach the high tonnage cutting force and ensure the same cutting depth of each cutting position.

2. The machine is equipped with automatic lubrication system to ensure the machine precision and prolong the service life of the machine.

3. When the cutting board is pressed to contact the cutter, it is automatically slow to cut, making the top and bottom of the cutting material have no size error.

4. Special setting structure, with the combination of cutting force and cutting height, make the trip easy and accurate.

5. It is operated by hands with high safety.



Maximum impact force 800KN
The cutting speed 0.09 m/s
Stroke range 0-150mm
The distance between the plates 60-210mm
Upper pressure plate size 1600x800mm
Lower work table size 1600x820mm
The motor power 5.5kw
External dimension 2380x1400x1400mm
The weight 5500kg


Note:The company can customize the special specifications such as cutting zone, feeding mode (single, bilateral automatic feeding) according to customer's requirements.
