Two Hand Operation Switch Hydraulic Swing Arm Cutting Machine / 1600×1000mm Cutting Area

Place of Origin JIANGSU ,CHINA
Brand Name YAOYU
Certification CE
Model Number YY
Minimum Order Quantity 1 SET
Packaging Details WOODEN CASE
Delivery Time 30 days
Payment Terms TT50% IN ADVANCE ,50% BEFORE SHIPMENT
Supply Ability 100 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Parameter Can Be Customized
High Light

swing arm die cutter

,

swing arm cutting press machine

Leave a Message
Product Description

Swing Arm Hydraulic Cutting Machine-10T







Parameter:

Model number:XCLP3-D800
Maximum cutting force:800KN
The cutting area:1600×1000mm
Upper pressure plate to table distance:50-185mm
Main motor power:7.5kw
Machine weight:7500kg



Note:The company can customize the special specifications such as cutting zone, feeding mode (single, bilateral automatic feeding) according to customer's requirements.



Advantage:

1.The high quality seamless steel tube is used to form the column, and the upper and lower two holes are used to guarantee the flexible and reliable operation of the clamshell.

2.Use two - hand operation switch to ensure the safety of operators.

3.The height of the swing arm by the handwheel adjustment at the top of the machine, blanking travel adjustment by the timer, so you can easily get the best cutting position, improve the work efficiency, prolong the service life of die cutter and plate.

4.Use the inertia of flywheel to save energy.

5.Swing arm swing freely, the operation of optional material is convenient.



Application:

This machine is suitable for blanking the ticket clip assembly, cell phone sets, small toys, decorative parts, leather bag accessories and other non-metallic materials.

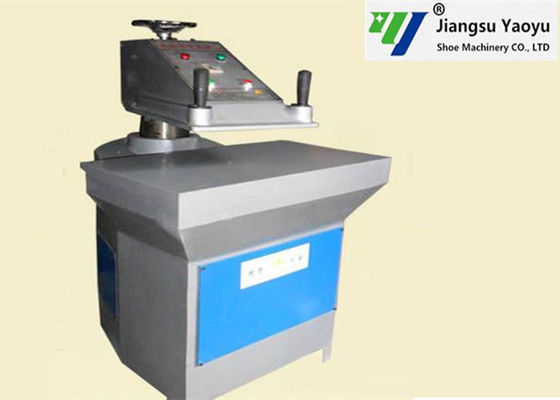

Two Hand Operation Switch Hydraulic Swing Arm Cutting Machine / 1600×1000mm Cutting Area 0
